Description

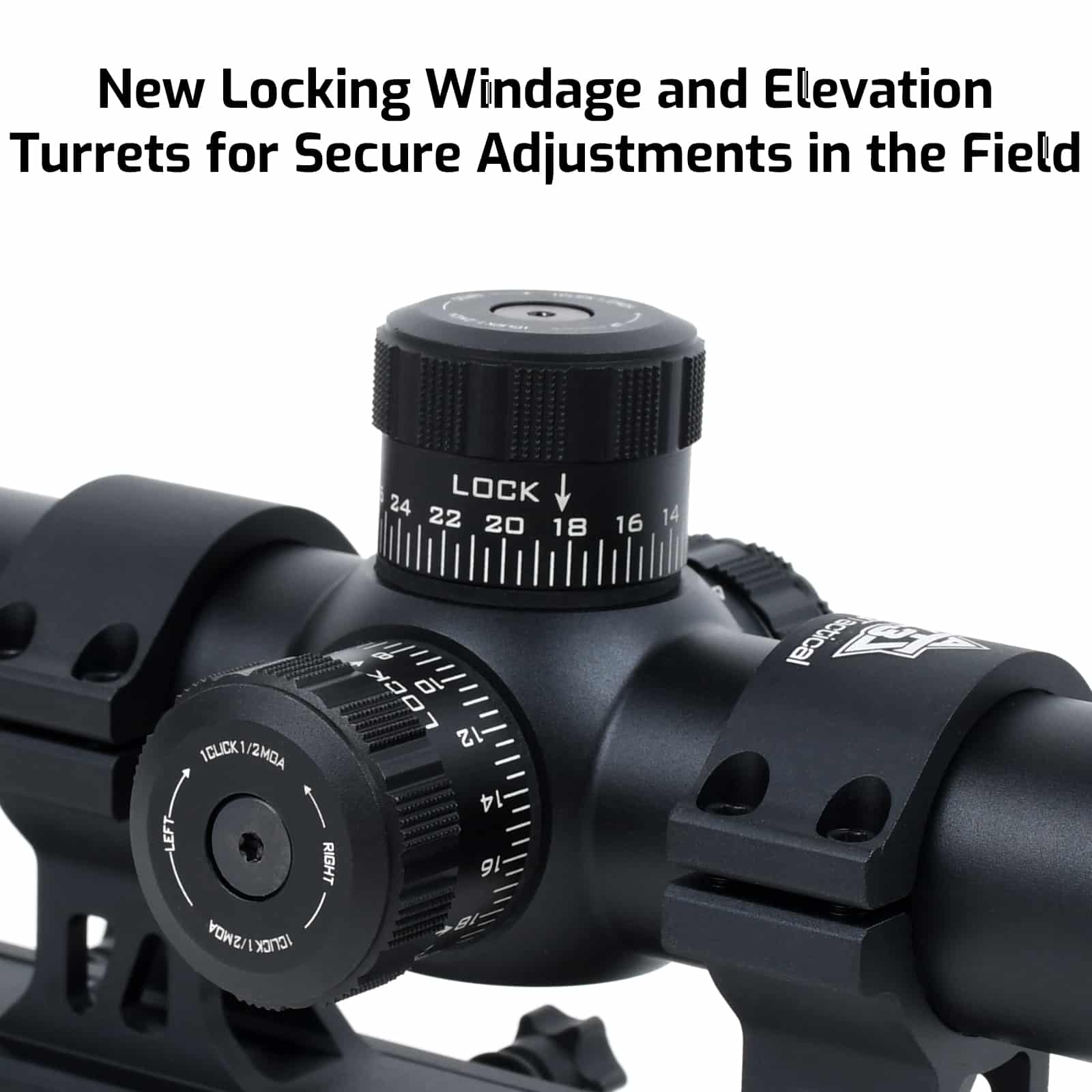

Red Tails come standard with locking caps for windage and elevation. Keep all the precision of the 1/2 MOA adjustments for the BDC reticle, with the added security of a push-pull lock mechanism. The clicks are audible and tactile for quick changes in the field.

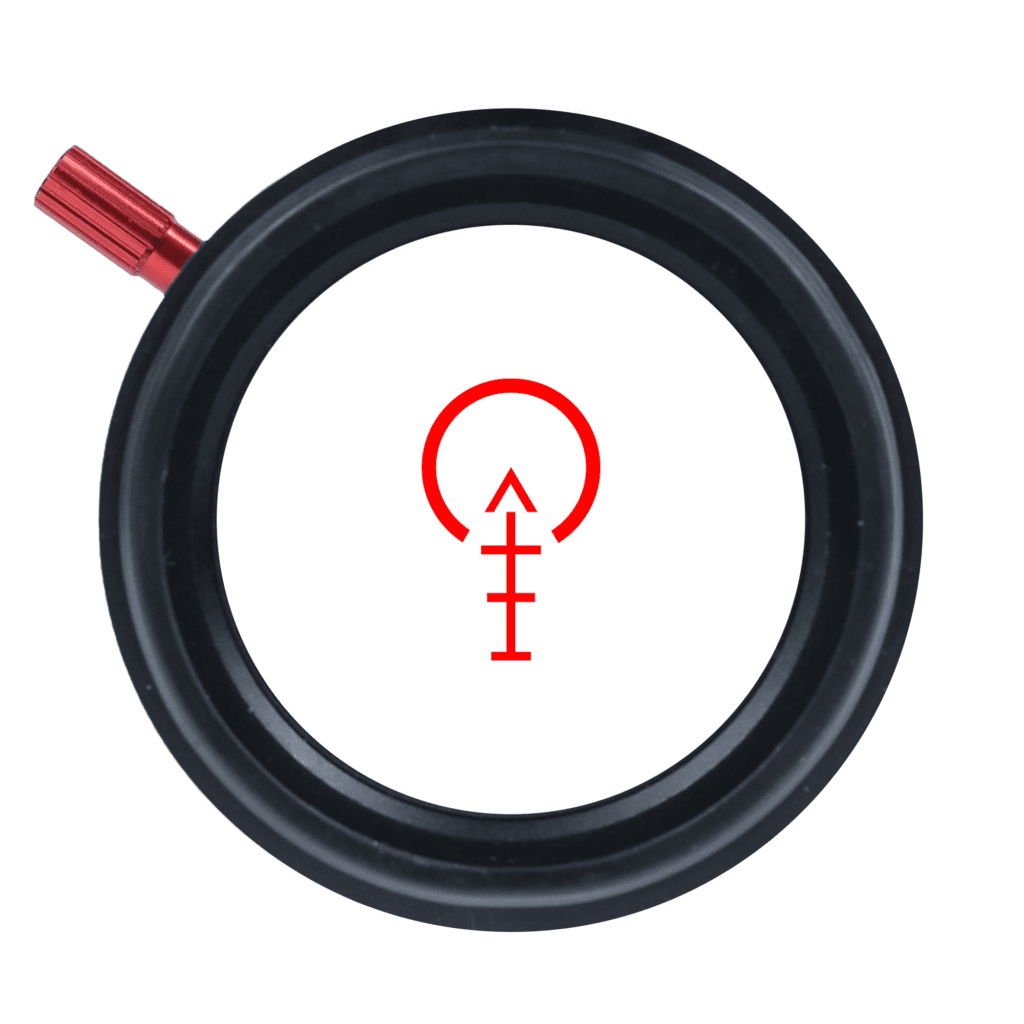

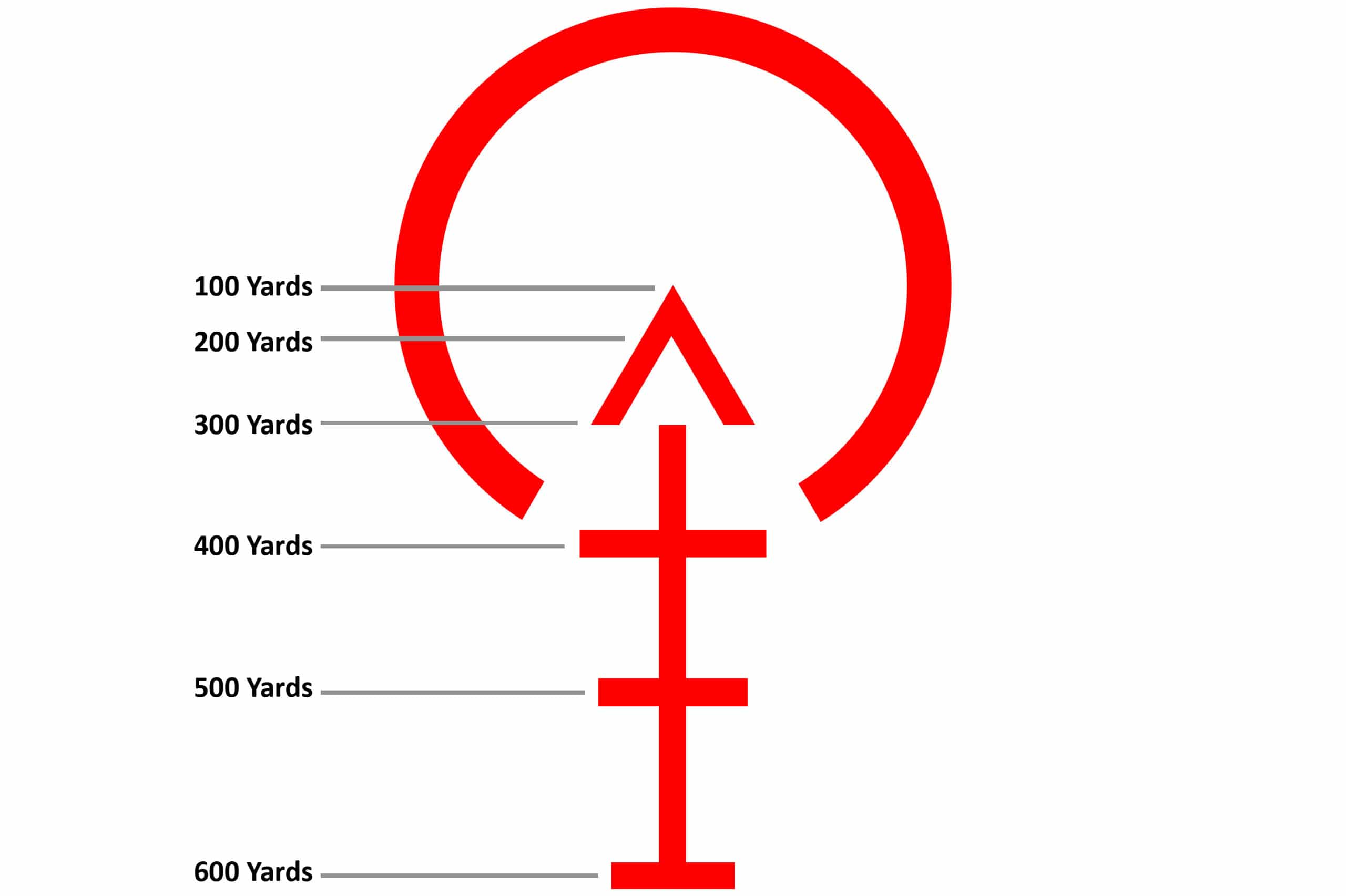

The AT3 Red Tail rifle scopes have a custom-designed and illuminated Bullet Drop Compensation (BDC) reticle.  The reticle has holdovers for shots out to 600 yards using popular .223/5.56 cartridges.  With this reticle, you won’t have to guess where to aim anymore – just use the holdovers and make more accurate shots.

Inside the box:

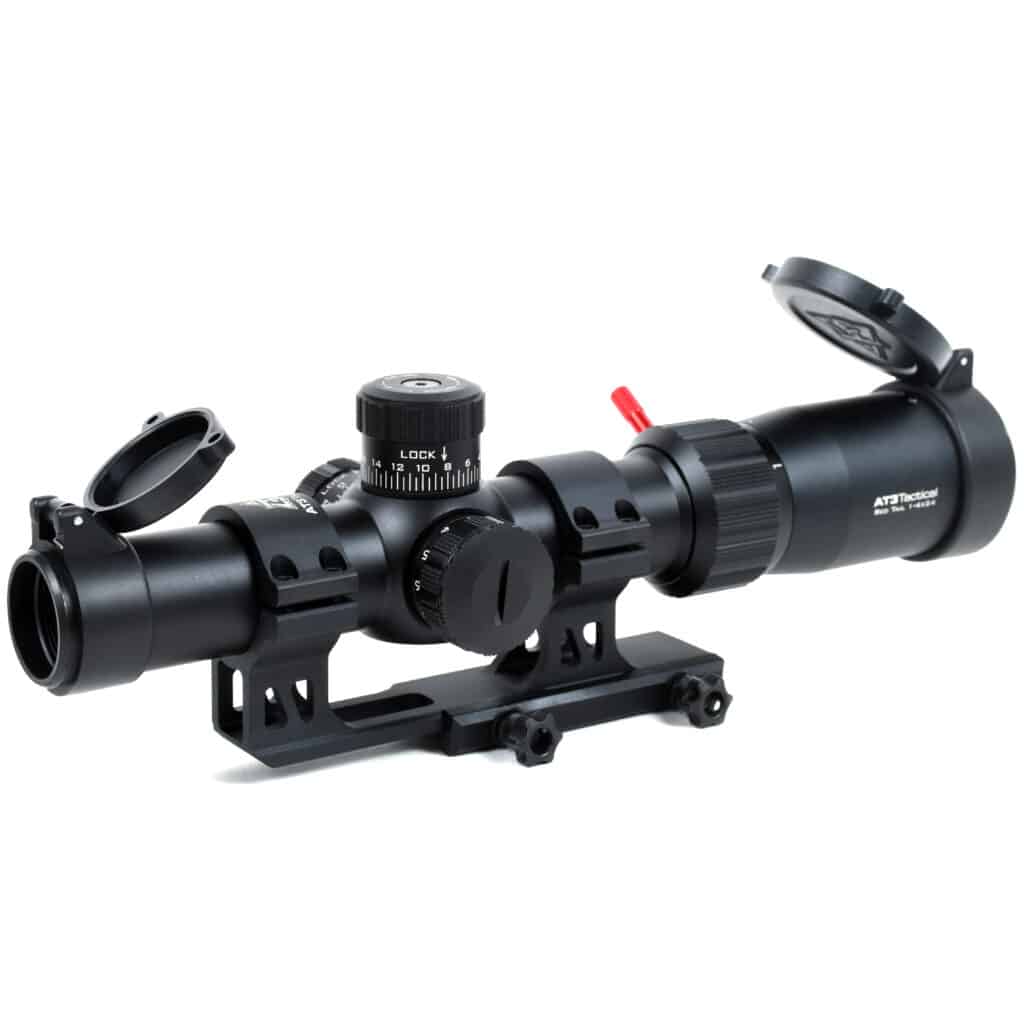

• Red Tail Rifle Scope
• Anodized Thread-in Throw Lever
• Flip-Up Lens Caps
• CR2032 Battery
• Instruction Sheet
• Lens cloth
• Optional: 30mm Cantilever Scope Mount (40mm height)

Detailed Specs for 1-4×24 Red Tail LPVO:

• Power / Objective Lens: 1-4×24
• Focal Plane: Second Focal Plane
• Reticle: BDC Reticle
• Illumination: Red with 11 brightness levels
• Lens Coating: Fully Multi-coated
• Weight: 16 oz
• Total Length: 9.88 in / 251mm
• Scope Tube Diameter: 30mm
• Exit Pupil: 6-24 mm
• Battery Type: CR2032 (Battery Included)
• Windage/Elevation Click Value: 0.5 MOA per click
• Adj Range: +/- 60 MOA (total adjustment range 120 MOA)
• Eye Relief, 1x Magnification: 5.12 in
• Eye Relief, 4x Magnification: 3.54 in
• Parallax Adjustment: Fixed
• Field of View, 1x Magnification: 96 ft @ 100 yds
• Field of View, 4x Magnification: 24 ft @ 100 yds
• Night Vision Compatible: No
• Nitrogen Filled: Yes

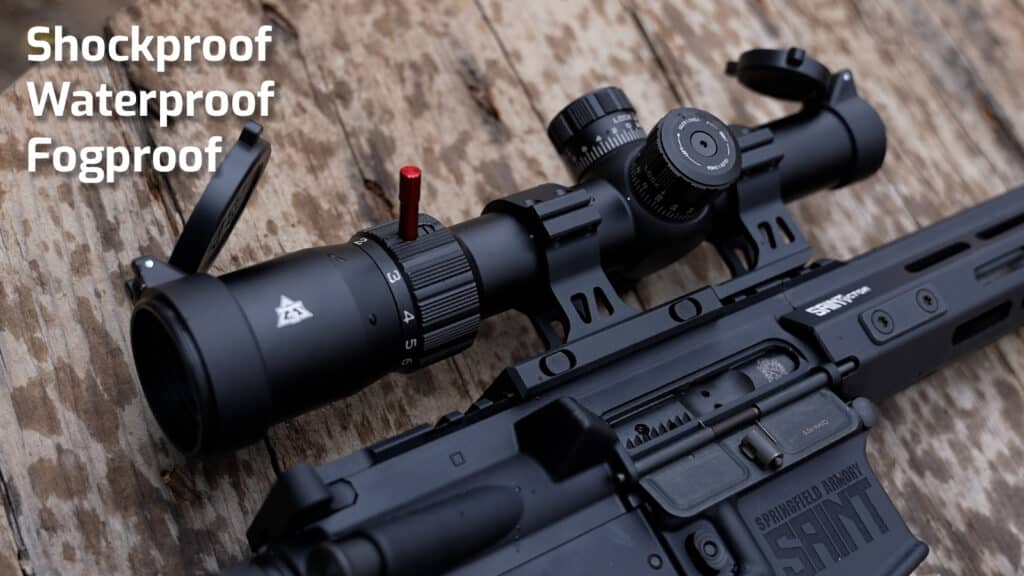

• Waterproof/Fogproof: IPX6 Rated
• Body material: 6063-T6 Aluminum
• Finish: Matte black anodized

Detailed Specs for 1-6×24 Red Tail LPVO:

• Power / Objective Lens: 1-6×24
• Focal Plane: Second Focal Plane
• Reticle: BDC Reticle
• Illumination: Red with 11 brightness levels
• Lens Coating: Multi-coated
• Weight: 16 oz
• Total Length: 10.66 in / 271mm
• Scope Tube Diameter: 30mm
• Exit Pupil: 4-24 mm
• Battery Type: CR2032 (Battery Included)
• Windage/Elevation Click Value: 0.5 MOA per click
• Adj Range: +/- 60 MOA (total adjustment range 120 MOA)
• Eye Relief, 1x Magnification: 5.11 in
• Eye Relief, 6x Magnification: 3.46 in
• Parallax Adjustment: Fixed
• Field of View, 1x Magnification: 111 ft @ 100 yds
• Field of View, 6x Magnification: 17 ft @ 100 yds
• Night Vision Compatible: No
• Nitrogen Filled: Yes
• Waterproof/Fogproof: IPX6 Rated
• Body material: 6063-T6 Aluminum
• Finish: Matte black anodized
